DS-PM1-O1H-WB(O-STD)

DS-PM1-O1H-WB(O-STD)

Código de material:302401747

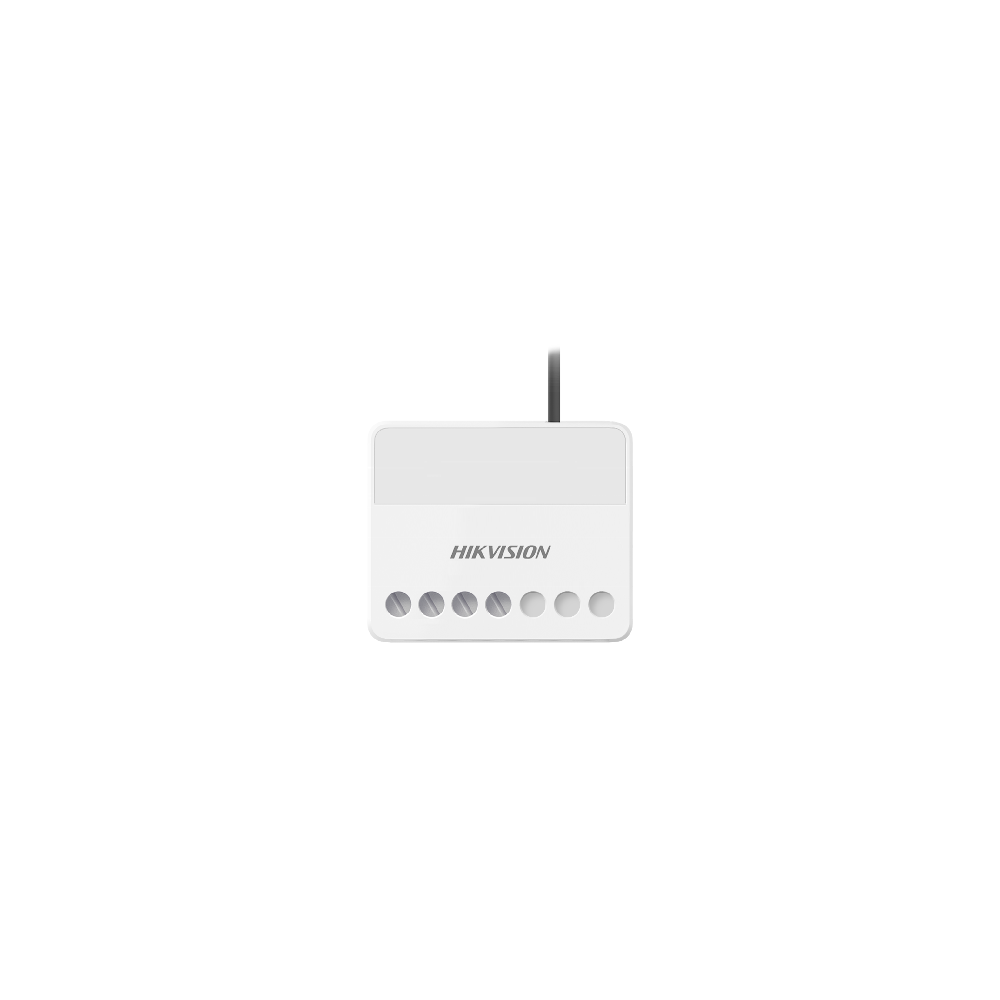

DS-PM1-O1H-WB

Solo 25 cantida en stock
$ 143.550,00
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

Software features

Scenario setting
By Alarm, By Operation, By Fault, By Schedule, By Manual
Learning button
1, For register

Hardware features

    Serial port
    1, for debug

Electrical characteristics

Power supply
AC 100v – 240v, 50/60 HZ
Operation humidity
10％~90％
Operation temperature
﹣10℃~+55℃

Wireless transmission

RF frequency
433MHz
RF method
Two way communication
RF modulation
2GFSK
RF distance
800m
Wireless security
AES-128

Display

     LEDs status
    3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)

General

Installation method
Wall Mounting or Inside 86 box
Dimension(WxHxD)
38x25x18mm
Shell material
Plastic
Color
White
Weight
31.5g

Device management

    Relay output
    1, NO/NC (AC 100~240v, Max 13A）

: Código de material:302401747
: 25 Artículos
Solo 25 cantida en stock
