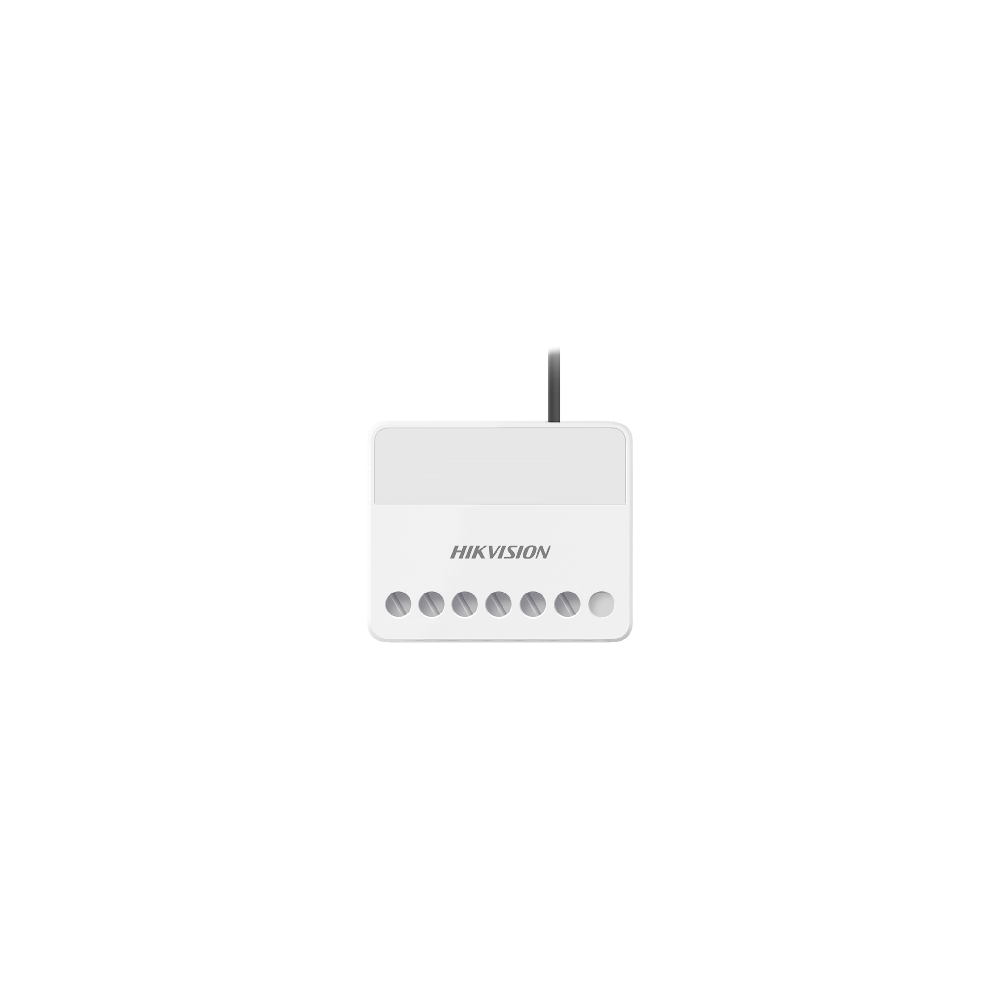

DS-PM1-O1L-WB(O-STD)

DS-PM1-O1L-WB(O-STD)

Código de material:302401746

DS-PM1-O1L-WB

Solo 100 cantida en stock
$ 125.280,00
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

Software features
Scenario setting
By alarm, by operation, by fault, by schedule, by manual
Learning button
1, for register

Hardware features

Serial port
1, for debug

Electrical characteristics

Power supply
DC 7V to 24V
Operation humidity
10% to 90%
Operation temperature
-10°C to 55°C

Wireless transmission

RF frequency
433 MHz
RF method
Two-way communication
RF modulation
2GFSK
RF distance
800 m
Wireless security
AES-128

Display

LEDs status
3, register/signal (green/red), power (green), relay status (blue)

General

Installation method
Wall-Mounting
Dimension(WxHxD)
38 mm × 25 mm × 18 mm
Shell material
Plastic
Color
White
Weight
28.5 g

Device management

Alarm input
1 for tamper, NO/NC
Relay output
1, NO/NC (0 to 36V DC, Max 5A)
