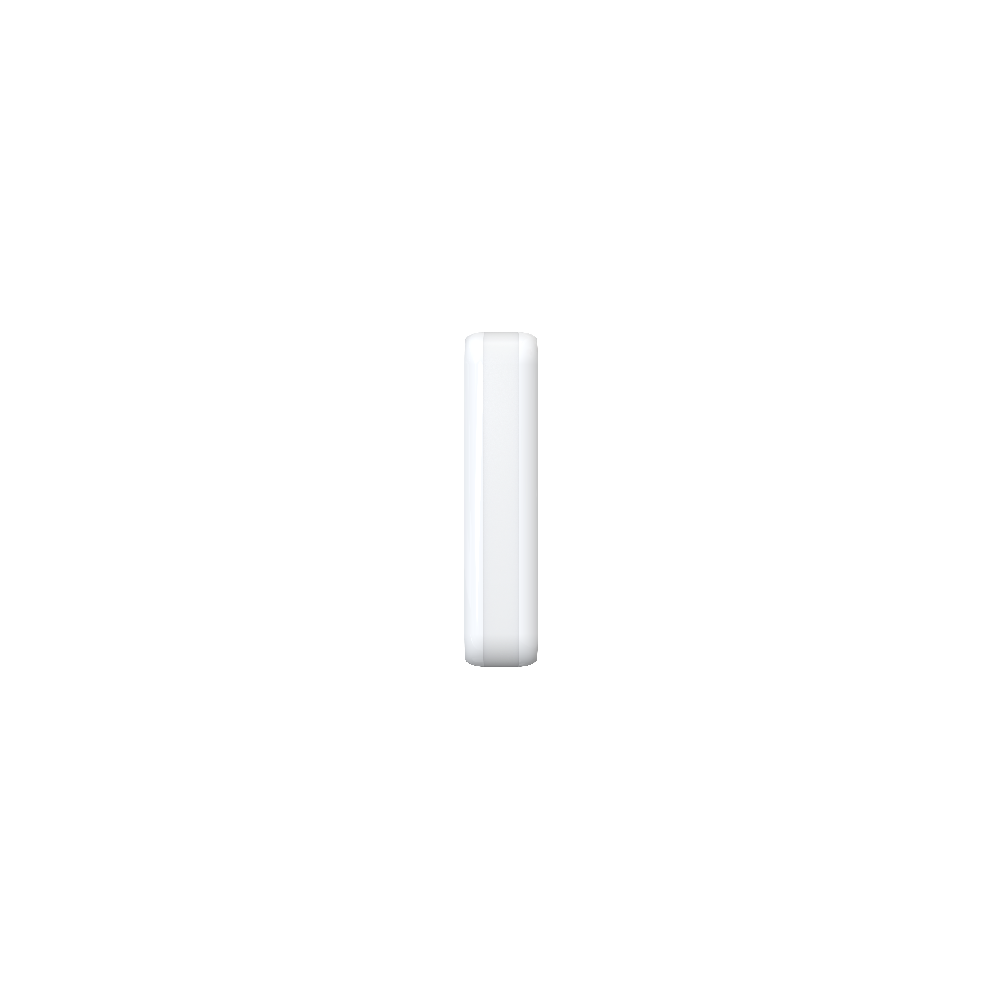

DS-PDC10AM-EG2-WB(O-STD)

DS-PDC10AM-EG2-WB(O-STD)

Código de material:314300189

DS-PDC10AM-EG2-WB

Solo 50 cantida en stock
$ 174.000,00
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

Detection Performance
Detection Method  Passive Infrared
Detection Range  Wall mount: 10m Ceiling mount: 5m
Detection Angle  5°
Detection Zones  32
Detectable Speed  0.3～2m/s
Sensitivity  Auto;Pet
White Light Filter  6500lux
Pet Immunity  Wall mount: 12 kg Ceiling mount: None
Digital Temperature Compensation  Support
Creep Zone Protection  Support
Anti-masking  Support

Feature

Digital Processing  Support
Sealed Optics  Support
Tamper Protection  Front;Rear
Environment Temperature Indicator  Support
Signal Strength Indicator  Support
Directional Detection  Support

Interface

Power Switch  Power up enrolling
LED Indicator  Blue(alarm), green+orange(mask)

Transmission

Transmission Technology  Tri-X Wireless
Transmission Method  Two-Way RF Wireless
Transmission Frequency  33MHz
Transmission Security  AES-128 Encryption
Transmission Range(Free Space)  1Km
Frequency Hopping  Support
Enrolling Method  Power up;Remote ID;QR Code

Electrical Characteristics

Standard Battery Life  Up to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures)
Power Supply  Battery powered
Battery Type  CR123A × 2
Typical Voltage  3V

General

Operation Temperature  -25°C to 60°C (-13°F to 140°F)
Storage Temperature  -25°C to 60°C (-13°F to 140°F)
Operation Humidity  10% to 90%
IP Rate  IP65
Dimension(WxHxD)  29.2 mm × 134. 4mm × 39.5 mm
Weight  118.5 g
Mounting Height  2 m to 3.5 m
Mounting Method  Wall;Ceiling
Application Scenario  Indoor, outdoor
Bracket  L-shaped adapter included
