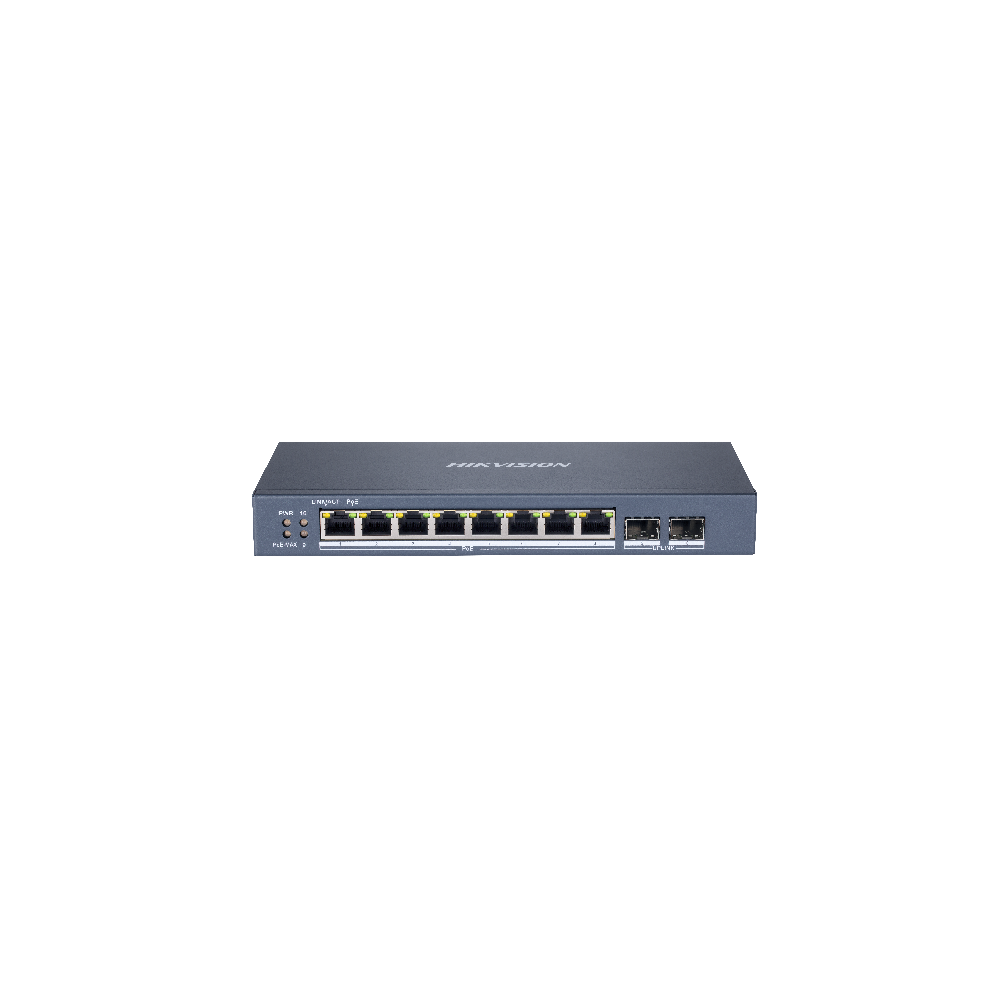

DS-3E1510P-SI(O-STD)

DS-3E1510P-SI(O-STD)

Código de material:301802029

DS-3E1510P-SI

Solo 4 cantida en stock
$ 755.450,00
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

General

Shell
Metal material
Net Weight
1.21 kg (2.67 lb)
Gross Weight
1.3 kg (2.87 lb)
Dimensions (W × H × D)
217.60 mm × 27.80 mm × 108.55 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
48 VDC, 2.5 A
Max. Power Consumption
120 W
Power Consumption in Idle
7 W

Network Parameters

Ports
8 × 1 Gigabit PoE port,2 × 1 Gigabit fiber optical port
Port Type
RJ45 port,full duplex,MDIMDI-X adaptive
Standard
IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
Forwarding Mode
Store-and-forward switching
Working Mode
Standard mode (default),Extend mode
MAC Address Table
8 K
Switching Capacity
20 Gbps
Packet Forwarding Rate
14.88 Mpps
Internal Cache
4.1 Mbits

PoE Power Supply

PoE Standard
IEEE 802.3af,IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
PoE Port
PoE: Ports 1 to 8
Max. Port Power
30 W
PoE Power Budget
110 W

: Código de material:301802029
: 4 Artículos
Solo 4 cantida en stock
