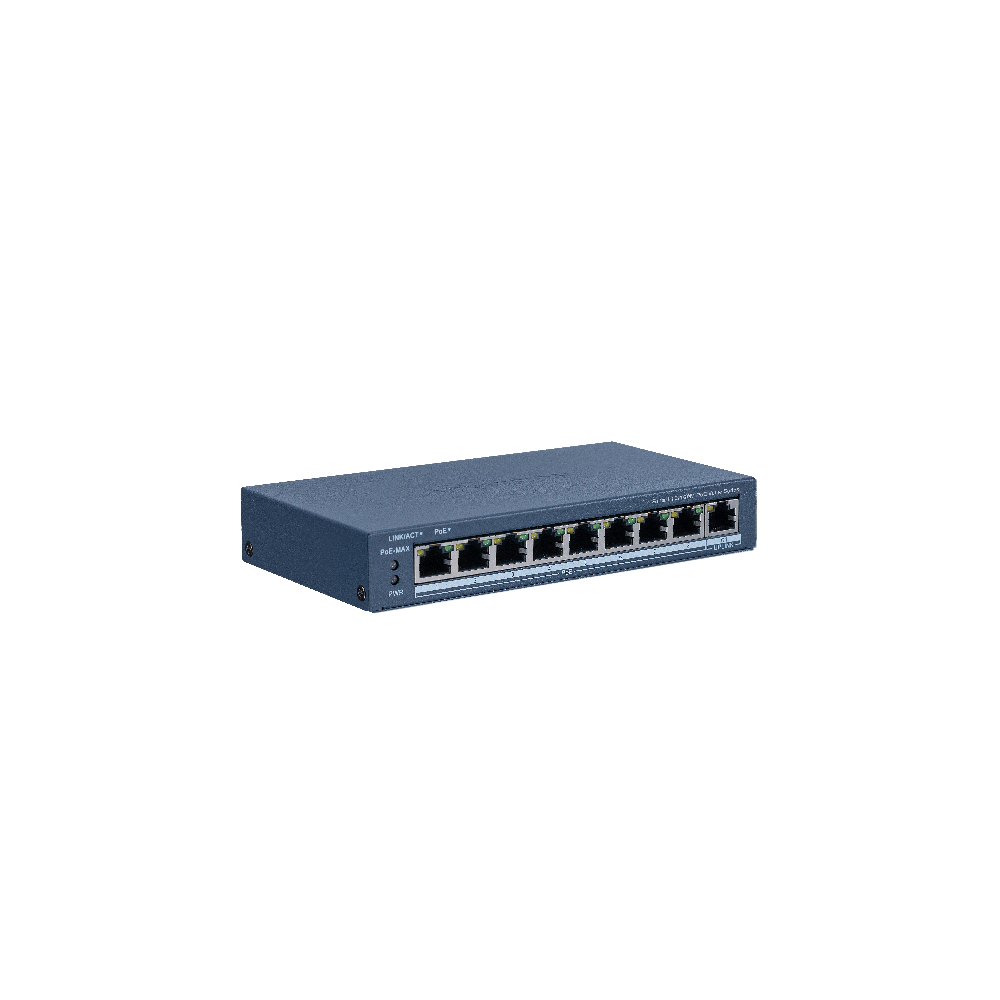

DS-3E1309P-EI/M(O-STD)

DS-3E1309P-EI/M(O-STD)

Código de material:301802705

DS-3E1309P-EI/M

Solo 3 cantida en stock
$ 274.050,00
IVA excluído
Cantidad

Últimas unidades en stock


Políticas de Seguridad



Políticas de envio



Políticas de Devolución

General

Shell
Metal material, fan-free design
Net Weight
0.4 kg (0.9 lb)
Gross Weight
0.9 kg (2.0 lb)
Dimensions (W × H × D)
170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
48 VDC, 1.35 A
Max. Power Consumption
65 W

Network Parameters

Port Type
RJ45 port,full duplex,MDIMDI-X adaptive
Standard
IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab
Ports
8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
Working Mode
Standard mode (default),Extend mode
Forwarding Mode
Store-and-forward switching
MAC Address Table
8 K
Internal Cache
4 Mbits
Switching Capacity
3.6 Gbps
Packet Forwarding Rate
2.6784 Mpps

PoE Power Supply

PoE Standard
IEEE 802.3af,IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
PoE: Ports 1 to 8
Max. Port Power
30 W
PoE Power Budget
60 W
