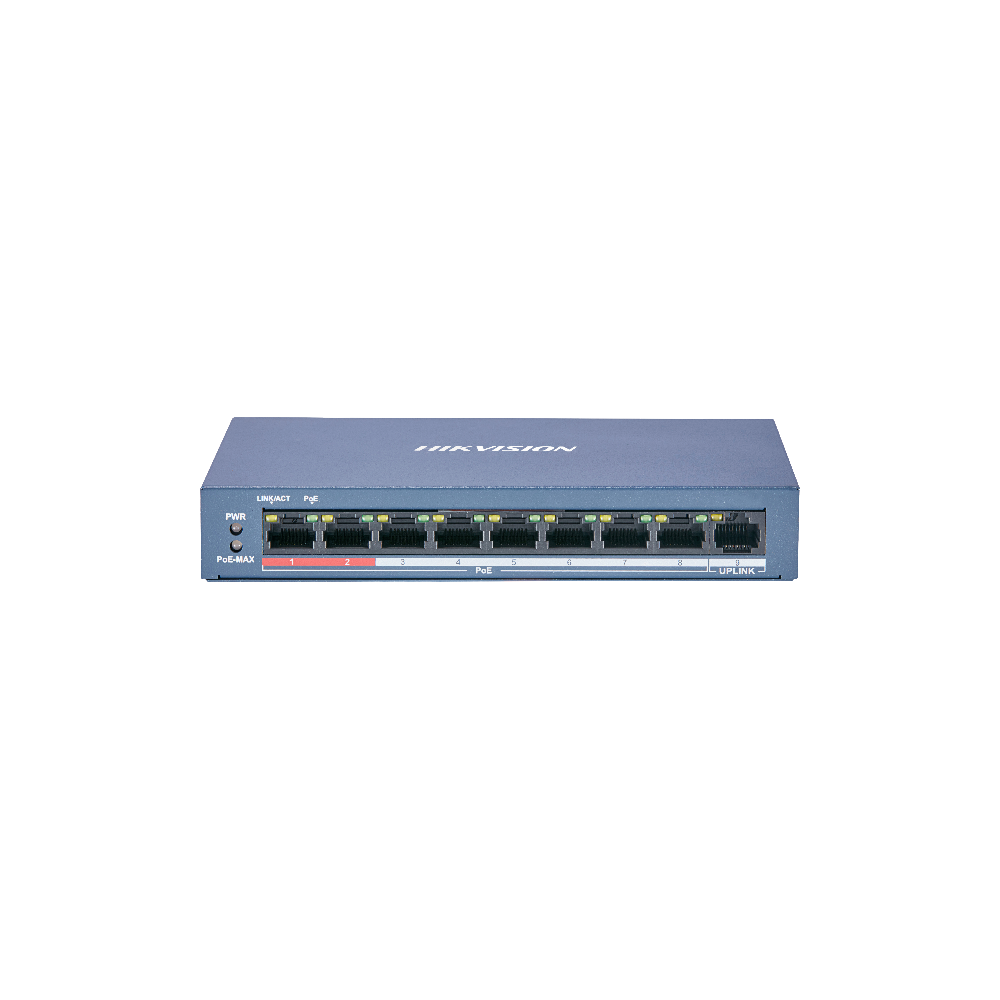

DS-3E0109P-E/M(B)(O-STD)

DS-3E0109P-E/M(B)(O-STD)

Código de material:301801293

DS-3E0109P-E/M(B)

Solo 3 cantida en stock
$ 201.550,00
IVA excluído
Cantidad

Últimas unidades en stock


Políticas de Seguridad



Políticas de envio



Políticas de Devolución

Network Parameters

Ports
8 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode
Standard mode (default); Extend mode
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode
Store-and-forward switching
High Priority Ports
Ports 1 to 2
MAC Address Table
2 K
Switching Capacity
1.8 Gbps
Packet Forwarding Rate
1.339 Mpps
Internal Cache
1 Mbits
Ports for Long-Distance Transmission
Ports 1 to 8

PoE Power Supply

PoE Standard
IEEE 802.3af, IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
Ports 1 to 8
Max. Port Power
30 W
PoE Power Budget
60 W

General

Dimensions (W × H × D)
170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
Shell
Metal material, fan-free design
Gross Weight
0.89 kg (1.96 lb)
Net Weight
0.35 kg (0.77 lb)
Operating Temperature
–10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity
5% to 95% (no condensation)
Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)
Storage Humidity
5% to 95% (no condensation)
Power Supply
48 VDC, 1.35 A
Power Consumption in Idle
5 W
Max. Power Consumption
65 W
