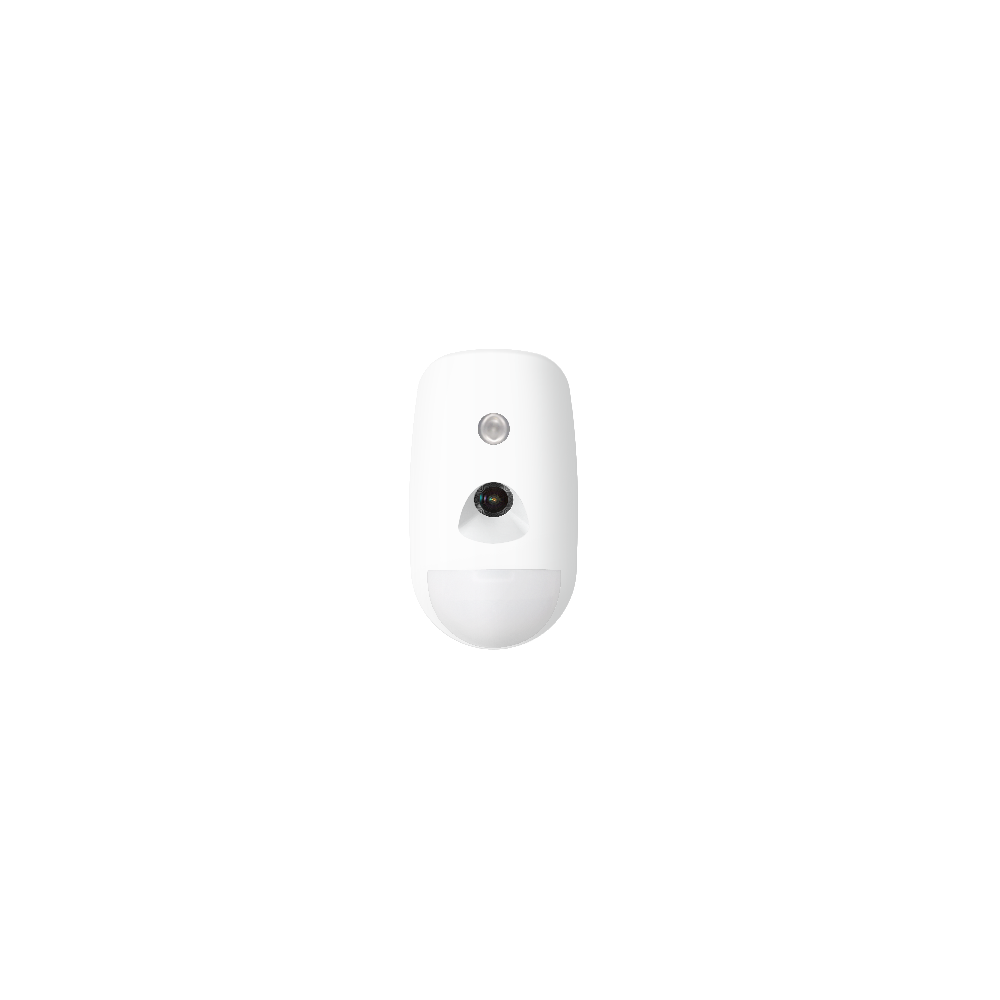

DS-PDPC12P-EG2(O-STD)

DS-PDPC12P-EG2(O-STD)

Código de material:314300382

DS-PDPC12P-EG2

Solo 25 cantida en stock
$ 319.000,00
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

Detection Performance

Detection Method  Passive Infrared;Video Verification
Detection Range  12m
Detection Angle  85.9°
Detection Zones  52
Detectable Speed  0.3～2m/s
Sensitivity  High;Auto;Pet
Pet Immunity  30Kg
White Light Filter  6500lux
Digital Temperature Compensation  Support
Creep Zone Protection  Support

Feature

Digital Processing  Support
Sealed Optics  Support
Tamper Protection  Front;Rear
Environment Temperature Indicator  Support

Video

Field Angle  109°(H), 60°(V)
Image Type  JPEG
Resolusion  1920*1080;1280*720;640*480
Fill Light  Infrared Light
Fill Range  12m
Day/Night Switch  Color/Black & White

Interface

Alarm Output  High Speed Bus
LED Indicator  Blue(Alarm)

Transmission

Transmission Technology  Speed-X Bus
Transmission Method  Wired
Transmission Security  AES-128 Encryption
Transmission Range(Free Space)  1Km
Enrolling Method  Power up;Remote ID;QR Code

Electrical Characteristics

Power Supply  9 to 16 VDC
Typical Voltage  12 VDC
Power Consumption  Maximum current：35mA @12VDC Quiescent current：0.1A@12VDC

General

Operation Temperature  -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature  -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity  10% to 90%
Dimension(WxHxD)  73mm × 130.5mm × 56.7mm
Weight  195g
Mounting Height  1.8 to 2.4m
Mounting Method  Wall
Application Scenario  Indoor
Bracket  Optional Wall & Ceiling Accessory
