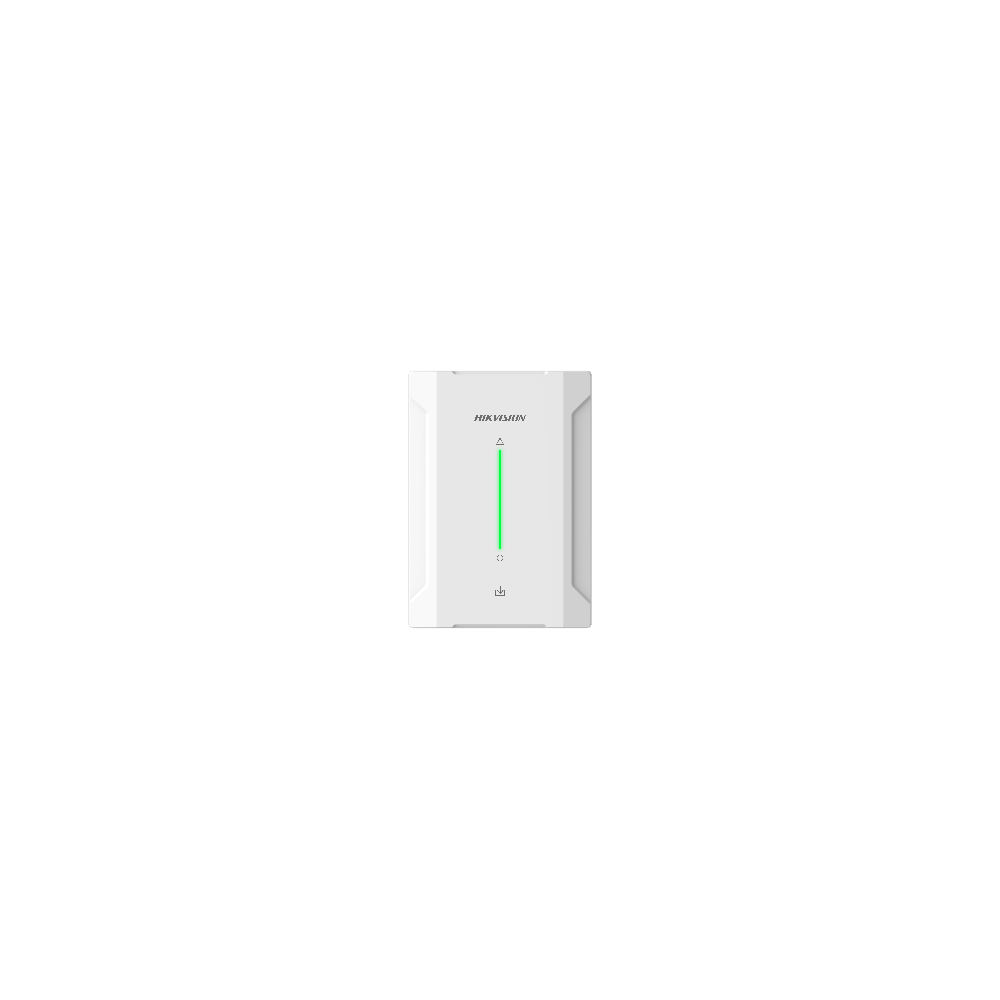

DS-PM1-I8O2-H(O-STD)

DS-PM1-I8O2-H(O-STD)

Código de material:302402010

DS-PM1-I8O2-H

Solo 29 cantida en stock
$ 160.225,00
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

Hardware features

Alarm input
8
IO Output
2 (connect to relay module)
Bus
2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading
Tamper-Proof
Support (front and rear)

Electrical characteristics

Typical voltage
12 VDC
Power supply
11 to 24 VDC
Power consumption
Maximum current: 119 mA@12 VDC Quiescent current: 45 mA@12 VDC
Output Voltage
9 to 12 VDC
Output Current
Maximum 500 mA

Display

LED Indicator
LED indicators: 1 for power, 1 for fault

General

Operation temperature
-10°C to 40°C
Operation humidity
10% to 90%
Shell material
Plastic
Dimension(WxHxD)
110 mm × 155 mm × 32 mm
Weight
252.5 g
