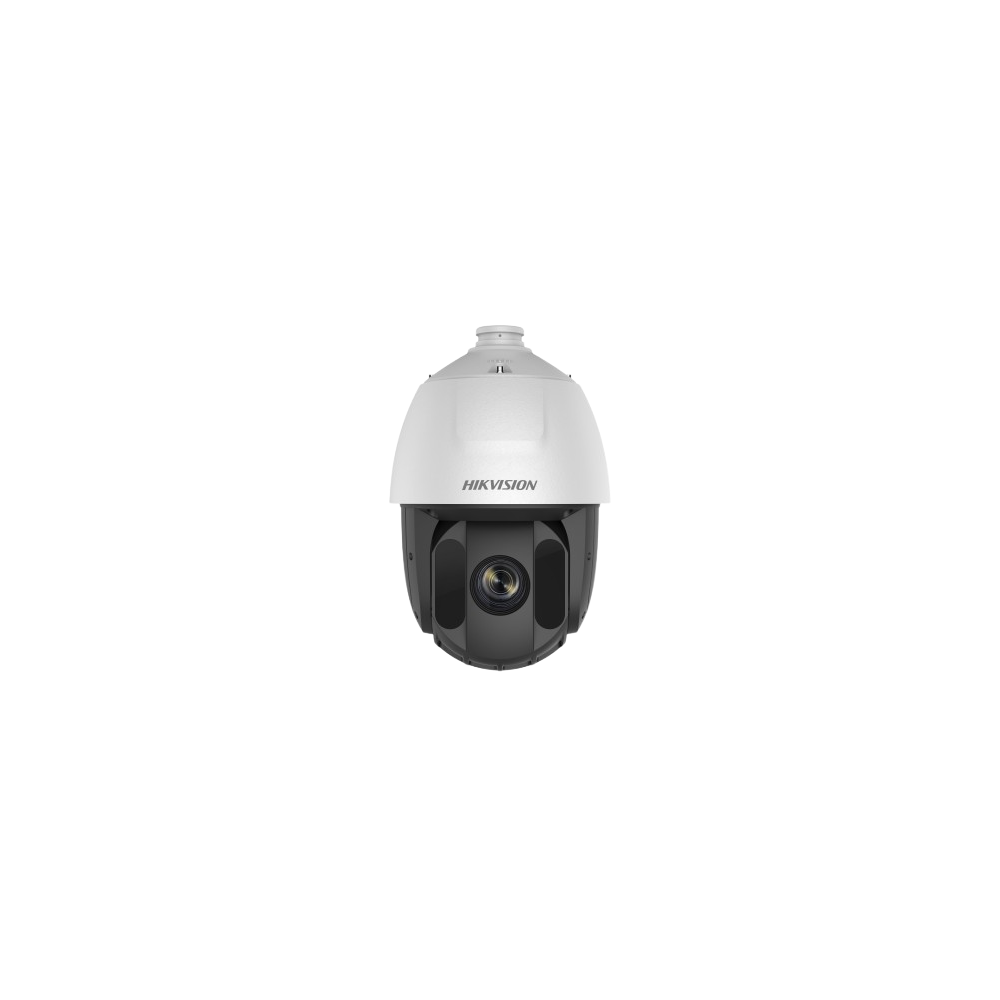

DS-2AE5225TI-A(O-STD)(E)

DS-2AE5225TI-A(O-STD)(E)

Código de material:301205352

DS-2AE5225TI-A

Solo 20 cantida en stock
$ 1.593.657,30
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Shutter Speed
PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
Day & Night
IR cut filter
Zoom
25 × optical, 16 × digital
Focal Length
4.8 mm to 120 mm, 25 × optical
FOV
Horizontal FOV: 57.6° to 2.5° (wide to tele) Vertical FOV: 34.4° to 1.4° (wide to tele) Diagonal FOV: 64.5° to 2.9° (wide to tele)
Focus
Auto, semi-auto, manual
Aperture
F1.6 to F3.5
Zoom Speed
Approx. 3.6 s (optical, wide to tele)
Movement Range (Pan)
360° endless
Movement Range (Tilt)
-15° to 90° (auto flip)
Pan Speed
Pan manual speed: 0.1° to 120°/s Pan preset speed: 120°/s
Tilt Speed
Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
Proportional Pan
Rotation speed can be adjusted automatically according to zoom multiples
Presets
256
Preset Freezing
Yes
Patrol Scan
10 patrols, up to 32 presets for each patrol
Pattern Scan
5 patterns, record time over 10 minutes for each scan
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display
Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory
Yes
     Frame Rate
     50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)
     Protocols
     UTC protocol (or HIKVISION-C protocol in previous DVR)
Video Output
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm
2 alarm inputs, 1 alarm output
RS-485
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
Protection
IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
