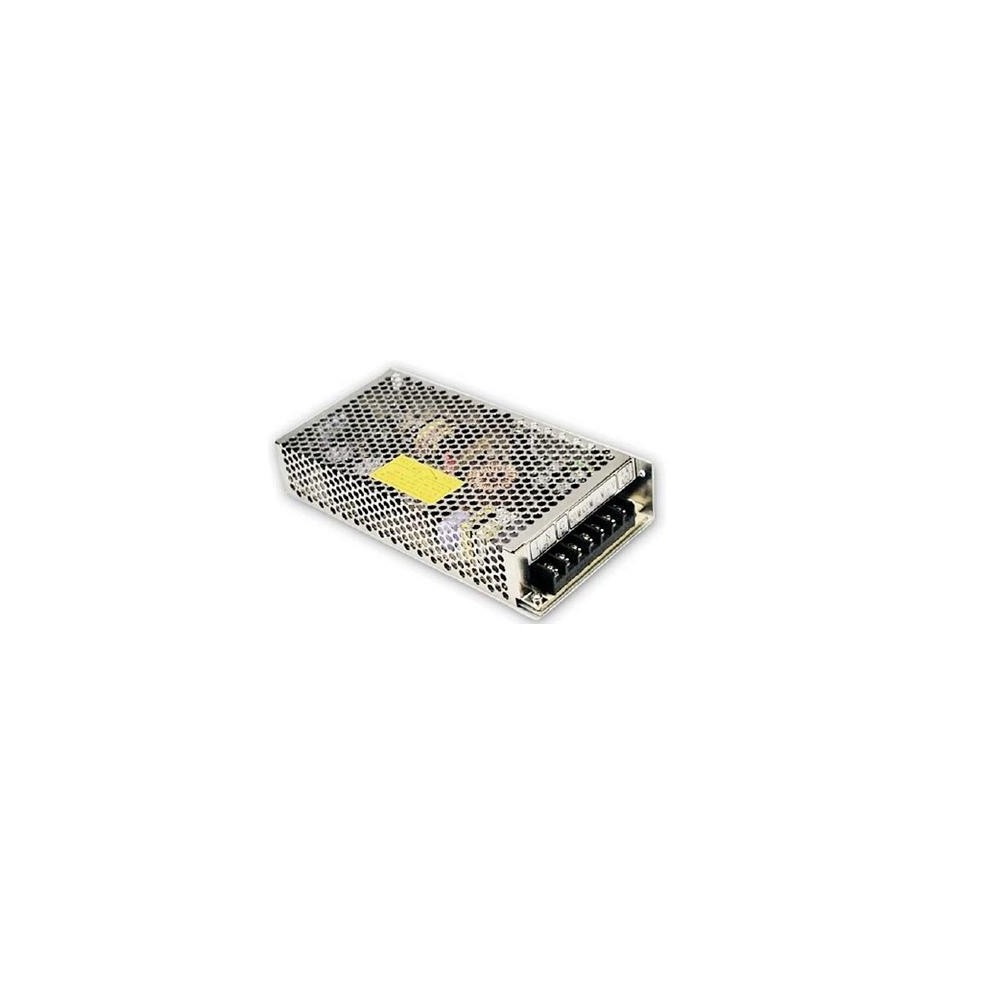

DS-KAW150-2N(O-STD)

DS-KAW150-2N(O-STD)

Código de material:305300639

DS-KAW150-2N

Solo 45 cantida en stock
$ 211.700,00
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

General

Working temperature
Operating: -10 °C to +70 °C (14 °F to 158 °F) Storage: -25 °C to +85 °C (-13 °F to 185 °F)
Working humidity
< 95% (No Condensation)
Input voltage
100 VAC to 240 VAC
Output voltage
24 VDC
Output current
6.25 A
Output power
150 W
Noise and ripple
< 150 mVpp @ 25 °C
Voltage adjustment range
23 VDC to 25 VDC
Cooling system
Convection
Dimension (L x W x D)
178 mm × 97 mm × 38 mm (7.01" × 3.82" × 1.50")

Weight
0.54 kg
: Código de material:305300639
: 45 Artículos
Solo 45 cantida en stock
