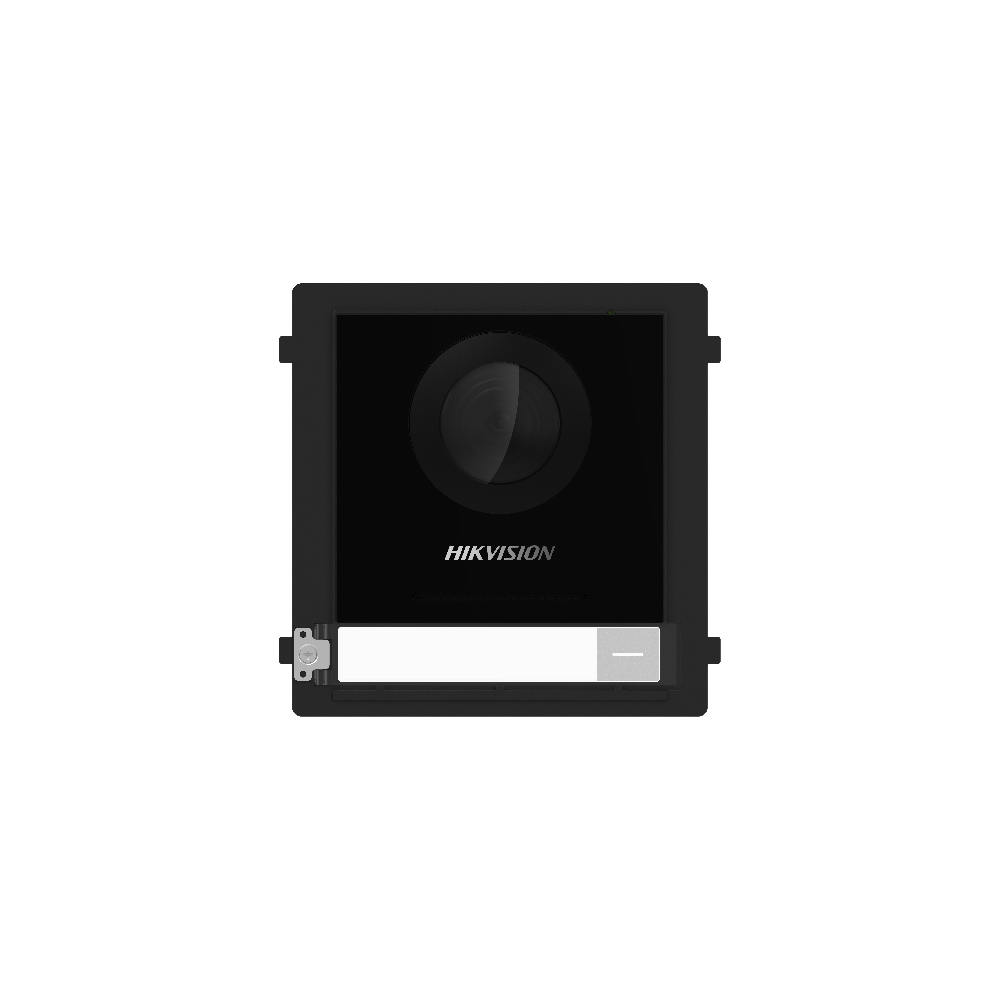

DS-KD8003-IME1(B)(O-STD)

DS-KD8003-IME1(B)(O-STD)

Código de material:305303026

DS-KD8003-IME1(B)

Solo 25 cantida en stock
$ 471.540,00
IVA excluído
Cantidad



Políticas de Seguridad



Políticas de envio



Políticas de Devolución

System parameters

Operating system Embedded Linux operation system
ROM 32 MB
RAM 256 MB
Video parameters
Supplement light Low illumination, IR supplement lights
Video standard H.264
Lens 1
FOV Horizontal: 146°, Vertical: 82°
WDR Support
Resolution 2 MP

Audio parameters

Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable

Capacity

User capacity 2000
Face capacity NA
Card capacity 6000
Linked indoor station capacity 500
Sub door station capacity 16

Network parameters

Communication protocol TCP/IP, RTSP
Wired network 10/100 Mbps self-adaptive Ethernet
Wi-Fi NA
Bluetooth NA
3G/4G NA

Device interfaces

Alarm input 4 (2 exit butttons and 2 door contacts by default)
TAMPER 1
Network interface 1 RJ45
Exit button 2 (2 for lock control)
Door contact input 2
RS-485 1 (1 for Hikvision's sub module communication)
Wiegand NA
TF card NA
Alarm output NA
Lock control 2 (2 relay, max to 30 V, 2 A)
USB NA
Power interface 12 VDC power output (max to 12 V, 500 mA)
Two-wire IP interface NA

General

Power supply 12 VDC/PoE ( IEEE 802.3af)
Button 1
Protective level IP65
Installation Surface mounting & flush mounting

: Código de material:305303026
: 25 Artículos
Solo 25 cantida en stock
